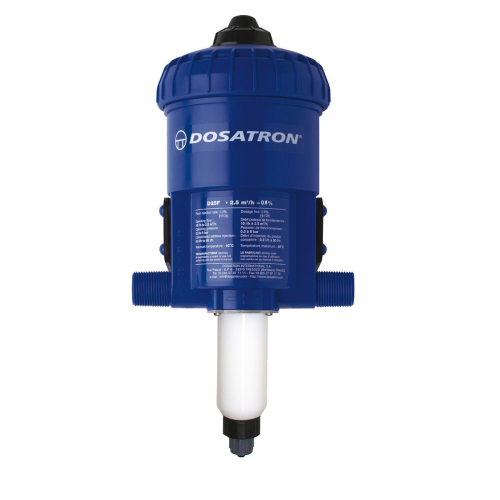

DOSATRON MEDICATOR #D25F
Easily dispense medications with the Dosatron D25F Fixed Ratio Medicator Injector. The water-powered D25F-11 GPM has a fixed rate of 1:128 with a water flow range of 0.05 to 11 GPM. This makes it a perfect step-up from the D128R when you need higher flow rates.
This Injector is perfect for the producer who only needs one setting or is concerned that the injection ratios may be changed inadvertently.
Powered by water pressure, the dispenser installs directly in your water supply line. A reliable way to inject antibiotics, vaccines, vinegar, chlorine, and disinfectants into water lines, the dispenser mixes the appropriate amount of solution with water regardless of variations in flow or pressure in your main line.
- SKU
- 8769
$302.80
More Information
| Product Name | DOSATRON MEDICATOR #D25F |
|---|---|
| SKU | 8769 |
| UDF Hazardous | No |
| Safety Data Sheet | Click Here for Information |
Features & Specifications
Features:
- Dilution Range: 1:128 Fixed (0.8%)
- Maximum Temp: 104° F
- Connection Size: 3/4" NPT
- Flow: 0.05 to 11 GPM
- Pressure: 4.3 to 85 PSI
- Housing Material: Polyacetal (Standard Blue)
- Dimensions: 14" x 6 1/4"
- Weight: 4 lbs
- Included Accessories: Mounting bracket, 6' clear suction tube, strainer, weight & quick start guide
| Model | FLow Rate | Injection Ratio | Oper. Pressure | Inlet/Outlet |
| D128R | 0.09 - 7 GMP | 1:200, 1:128, 1:100 | 7-70 PSI | 3/4" NPT |
| D25F | 0.05 - 11 GMP | 1:128 | 4.3-85 PSI | 3/4" NPT |
