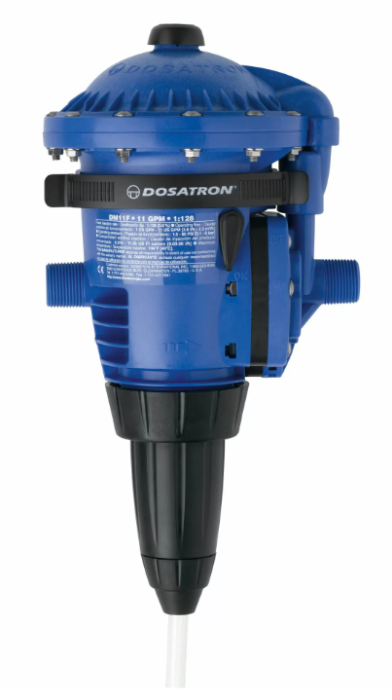

DOSATRON MEDICATOR #DM11F

The Dosatron DM11F Diaphragm Injector was designed for use in poor water quality areas due to sugar sand, iron, or hard water. Ideal for use with day-old chicks and weaners, this injector was built for low water flow use. Features a piston-free hydraulic motor with a highly chemical resistant housing.

SKU
8756
$339.75

More Information

Product Name DOSATRON MEDICATOR #DM11F
SKU 8756
UDF Hazardous No
Safety Data Sheet Click Here for Information

Features & Specifications

Features/Specifications

  • No Metal Parts
  • Max Flow: 11 GPM
  • Min Flow: 0.02 GPM
  • Injection Percents: 0.8%
  • Injection Ratios: 1:128 Fixed
  • Pressure Range: 1.5 to 85 PSI
  • Housing Material: Polypropylene (Standard Blue)
  • Connections: 3/4" NPT
  • Maximum Temperature: 104° F
  • Dimensions: 16" x 7"
  • Weight: 5 lbs
  • Larger Capacity: Less strain on motor parts allowing for a longer life
